Marshalling Cable Solutions

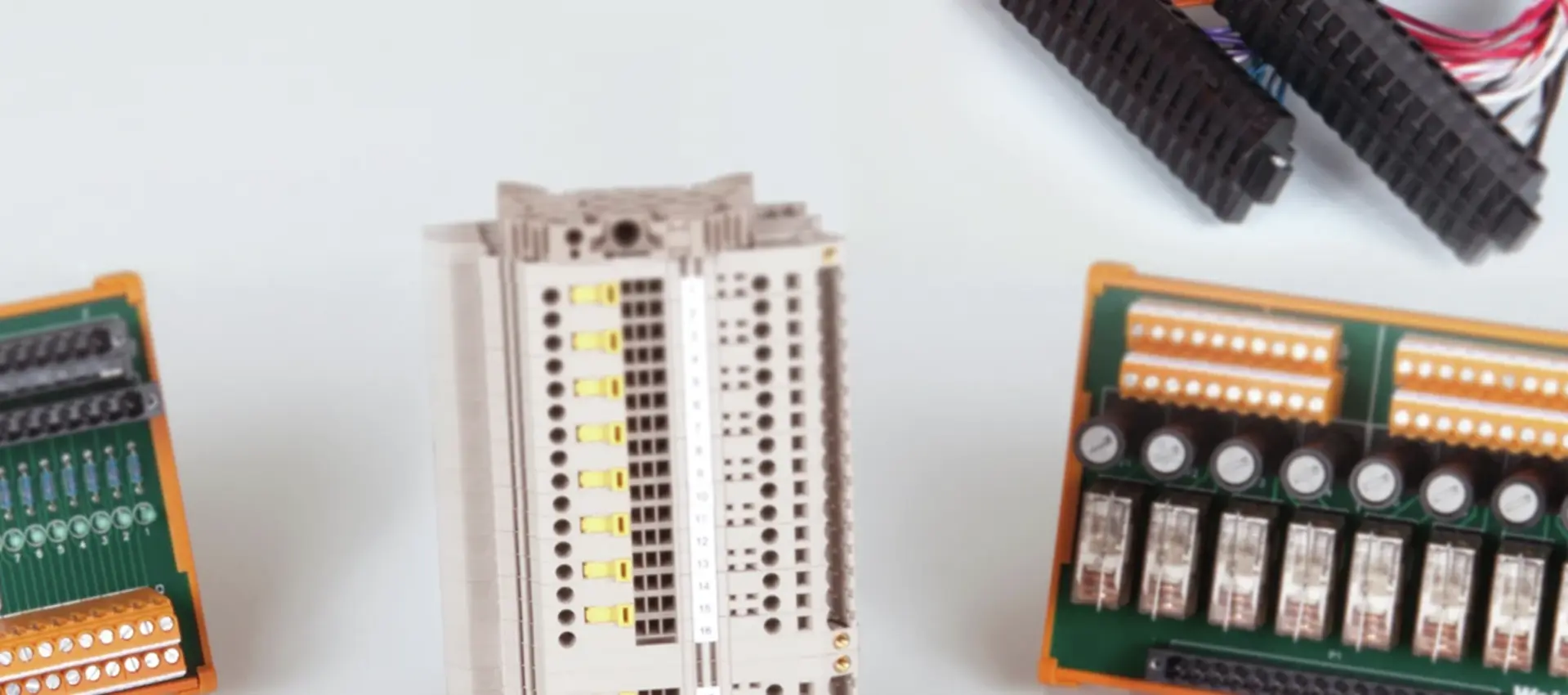

Weidmüller has teamed with designers to provide a simple and easy solution to marshal DCS control systems. This complete marshalling system features two field wiring termination options with using either field termination assemblies or terminal blocks and engineered marshalling cables.

Marshalling Cable Solutions

Solutions Overview

Field Termination Assemblies

A range of field termination assemblies (FTA’s) include discrete and analog versions. Some versions will feature disconnects and test points.

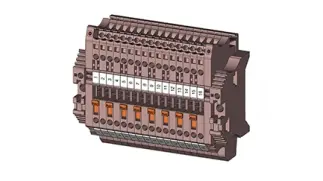

Terminal Block Kits

Weidmuller offers a full line of terminal blocks with pluggable connectors. These terminal blocks have been custom kitted in eight configurations.

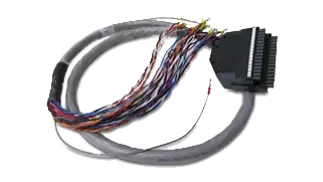

Cables

These special cables are designed and built to make connections to your DCS simple and easy regardless of how the field cables are terminated. There are versions to connect to field terminations via a FTA’s (clamshell version), pluggable terminal blocks (BLZ, 5.08 version) or individual blocks (Flying lead versions).

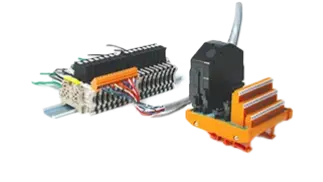

Typical Application Configurations

Using the modular components of cables, field termination assemblies and terminal block kits, almost any combination of discrete or analog signals can be marshalled or wired, regardless of the DCS or PLC used.

Marshalling Cable Configurator

Start designing your complete marshalling system with our Marshalling Cable Configurator.
