Field Termination Assemblies

A range of field termination assemblies (FTA’s) include discrete and analog versions. Some versions will feature disconnects and test points.

Field Termination Assemblies

Field Termination Assemblies (FTA)

A full line of interface modules is available which greatly reduces cabinet space, shortens the time to marshal and provides error-free connections.

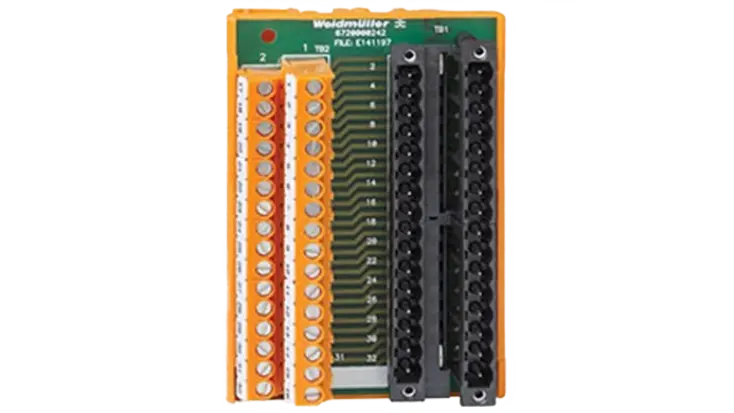

FTA 6720000242

32 point (16 channel) with field wiring entering from the LEFT side of the cabinet, featuring screw clamp type feed through connections includes marking tags. This device supports both discrete and analog signals and is cULus approved.

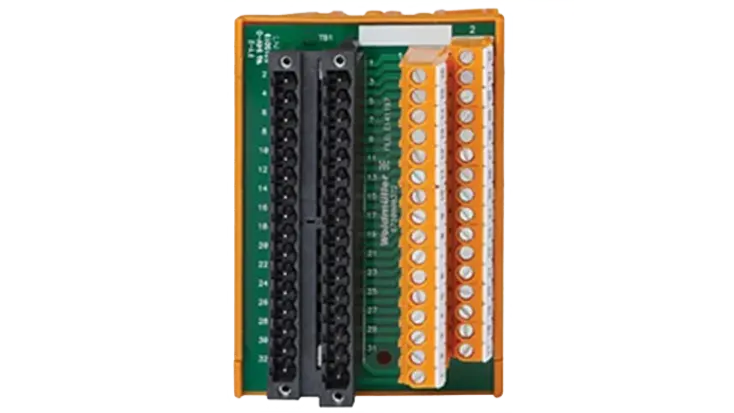

FTA 6720000372

32 point (16 channel) with field wiring entering from the RIGHT side of the cabinet, featuring screw clamp type feed through connections includes marking tags. This device supports both discrete and analog signals and is cULus approved.

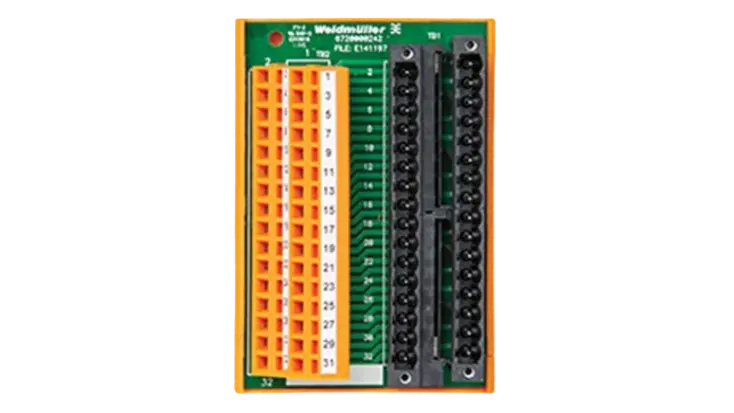

FTA 6720000587

32 point (16 channel) with field wiring entering from the LEFT side of the cabinet, featuring tension clamp type feed through connections includes marking tags. This device supports both discrete and analog signals and is cULus approved.

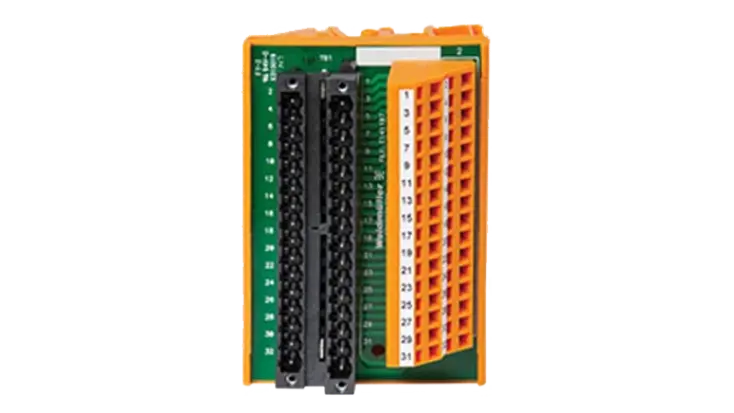

FTA 6720000588

32 point (16 channel) with field wiring entering from the RIGHT side of the cabinet, featuring tension clamp type feed through connections includes marking tags. This device supports both discrete and analog signals and is cULus approved.

FTA 6720000406

32 point (16 channel) has an extra 4 terminations for power connection, with field wiring entering from the LEFT side of the cabinet, featuring screw type feed through connections includes marking tags. This device was designed to support analog signals with the additional 4 pole power connection it is cULus approved.

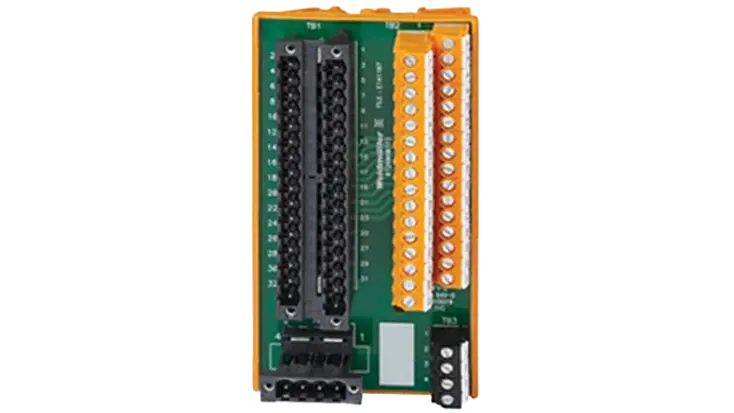

FTA 6720000373

32 point (16 channel) has an extra 4 terminations for power connection, with field wiring entering from the RIGHT side of the cabinet, featuring screw type feed through connections includes marking tags. This device was designed to support analog signals with the additional 4 pole power connection it is cULus approved.

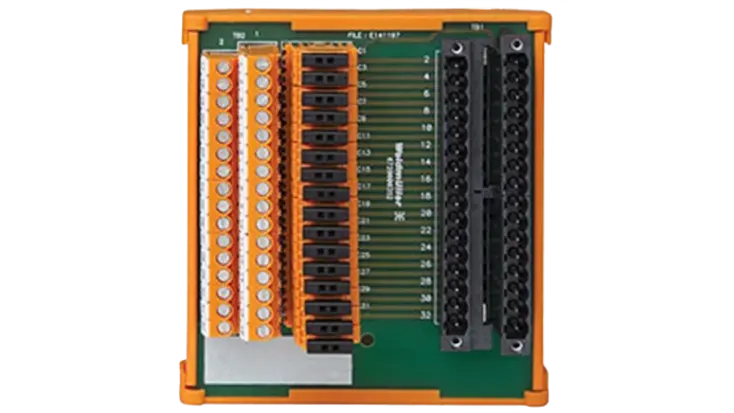

FTA 6720000352

32 point (16 channel) with DISCONNECTS for each channel with field wiring entering from the LEFT side of the cabinet, featuring screw type feed through connections includes marking tags. This device supports both discrete and analog signals and is cULus approved.

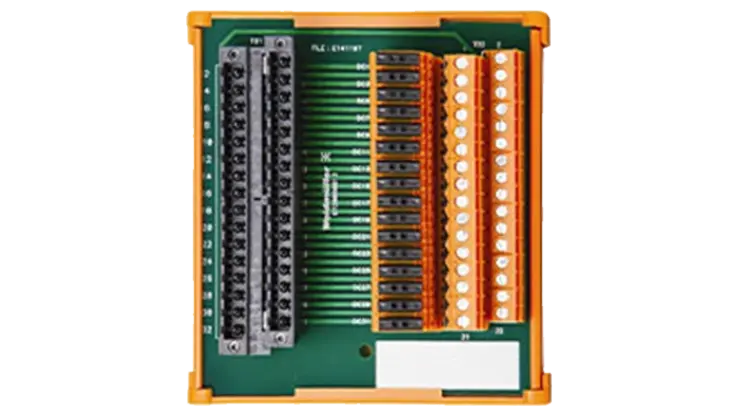

FTA 6720000813

32 point (16 channel) with DISCONNECTS for each channel with field wiring entering from the RIGHT side of the cabinet, featuring screw type feed through connections includes marking tags. This device supports both discrete and analog signals and is cULus approved.

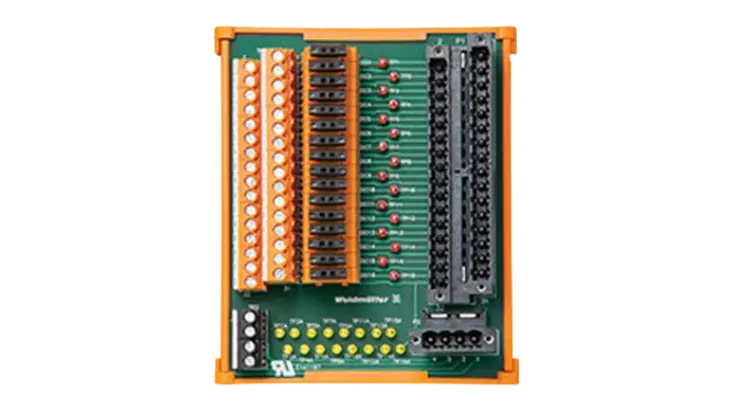

FTA 6720000764

32 point (16 channel) with DISCONNECTS and TEST POINTS for each channel with field wiring entering from the LEFT side of the cabinet, featuring screw type feed through connections includes marking tags. This device supports both discrete and analog signals and is cULus approved.

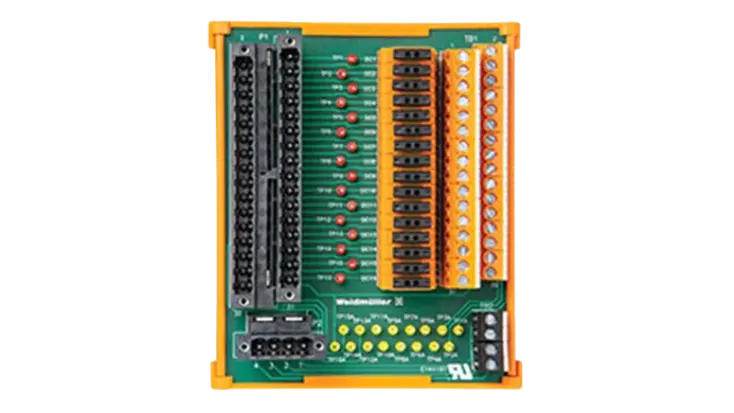

FTA 6720000763

32 point (16 channel) with DISCONNECTS and TEST POINTS for each channel with field wiring entering from the RIGHT side of the cabinet, featuring screw type feed through connections includes marking tags. This device supports both discrete and analog signals and is cULus approved.

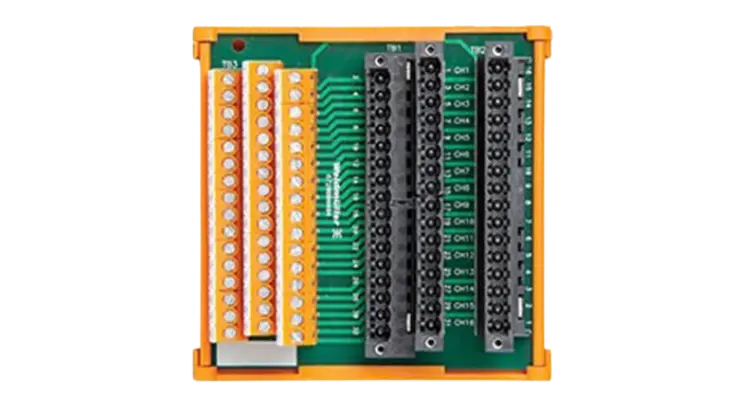

FTA 6720000404

48 points (16 channel) with field wiring entering from the LEFT side of the cabinet, featuring screw type feed through connections includes marking tags. This device is designed so support three wire analog signal channels

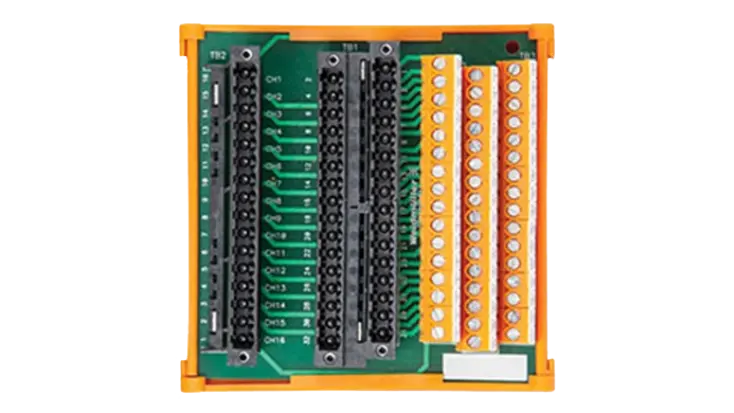

FTA 6720000844

48 points (16 channel) with field wiring entering from the RIGHT side of the cabinet, featuring screw type feed through connections includes marking tags. This device is designed so support three wire analog signal channels

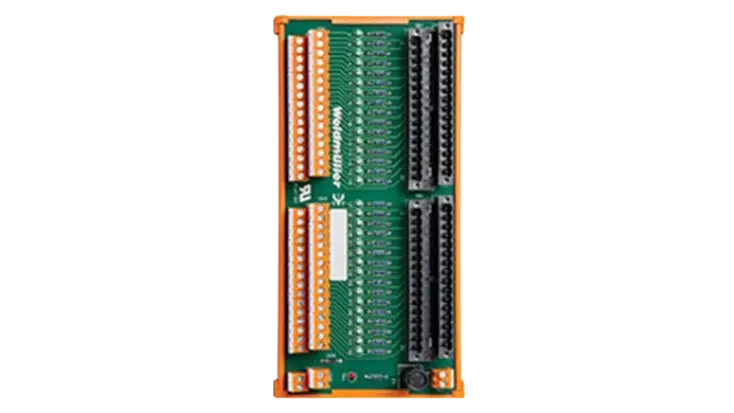

FTA 6720000570

64 point (32 channel) with LED indication for each channel, field wiring entering from the LEFT side of the cabinet, featuring screw clamp type feed through connections includes marking tags. This device supports both discrete and analog signals and is cULus approved.

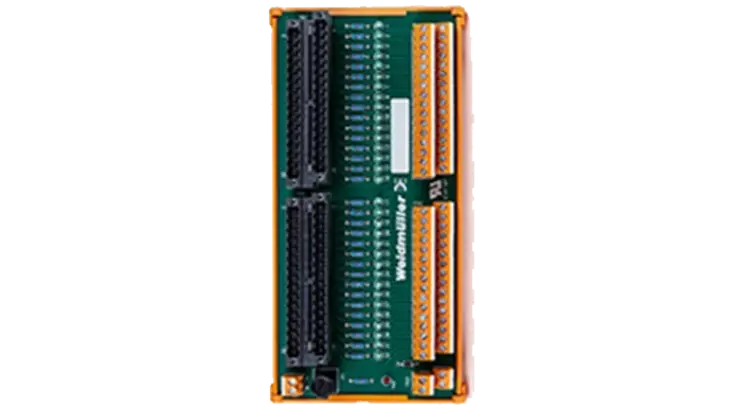

FTA 6720000824

64 point (32 channel) with LED indication for each channel, field wiring entering from the RIGHT side of the cabinet, featuring screw clamp type feed through connections includes marking tags. This device supports both discrete and analog signals and is cULus approved.
